Ongoing Work / Architectural Partition

Before the glass, the partition is built as a repeating metal system.

Capsule-shaped metal frames are being fabricated, aligned and assembled to create a continuous glass partition with rhythm, transparency and controlled separation.

Site Journal Work in Progress Bengaluru

Workshop assembly in progress before the glass is introduced.

01 / The repeating system

A glass partition is only as consistent as the framework behind it.

The finished interior will read as a calm, repeating rhythm. Achieving that effect starts in the workshop, where capsule-shaped frames are formed, checked and assembled to a common geometry.

This project documents the practical work behind that visual order: frame layout, repeated modules, batch fabrication, protection and preparation for installation.

The project remains under construction. This record will be updated as fabrication and installation progress.

02 / Frame layout

Repeated geometry turns a design language into a buildable system.

Each capsule frame is laid out and checked before assembly. Consistent radii, spacing and connection points are what allow the finished partition to read as one continuous composition.

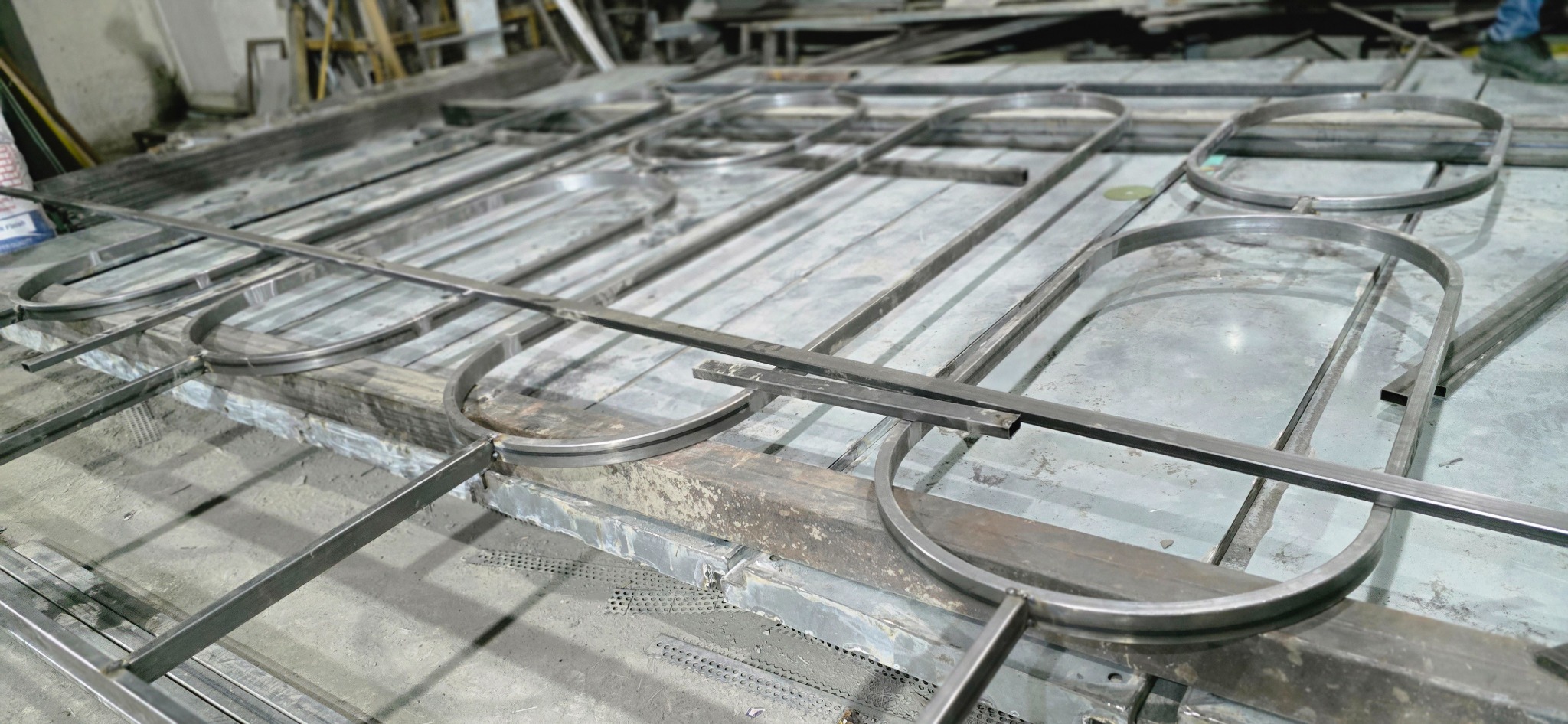

Metal capsule frames laid out for fabrication — Frame sections laid out for controlled fabrication.

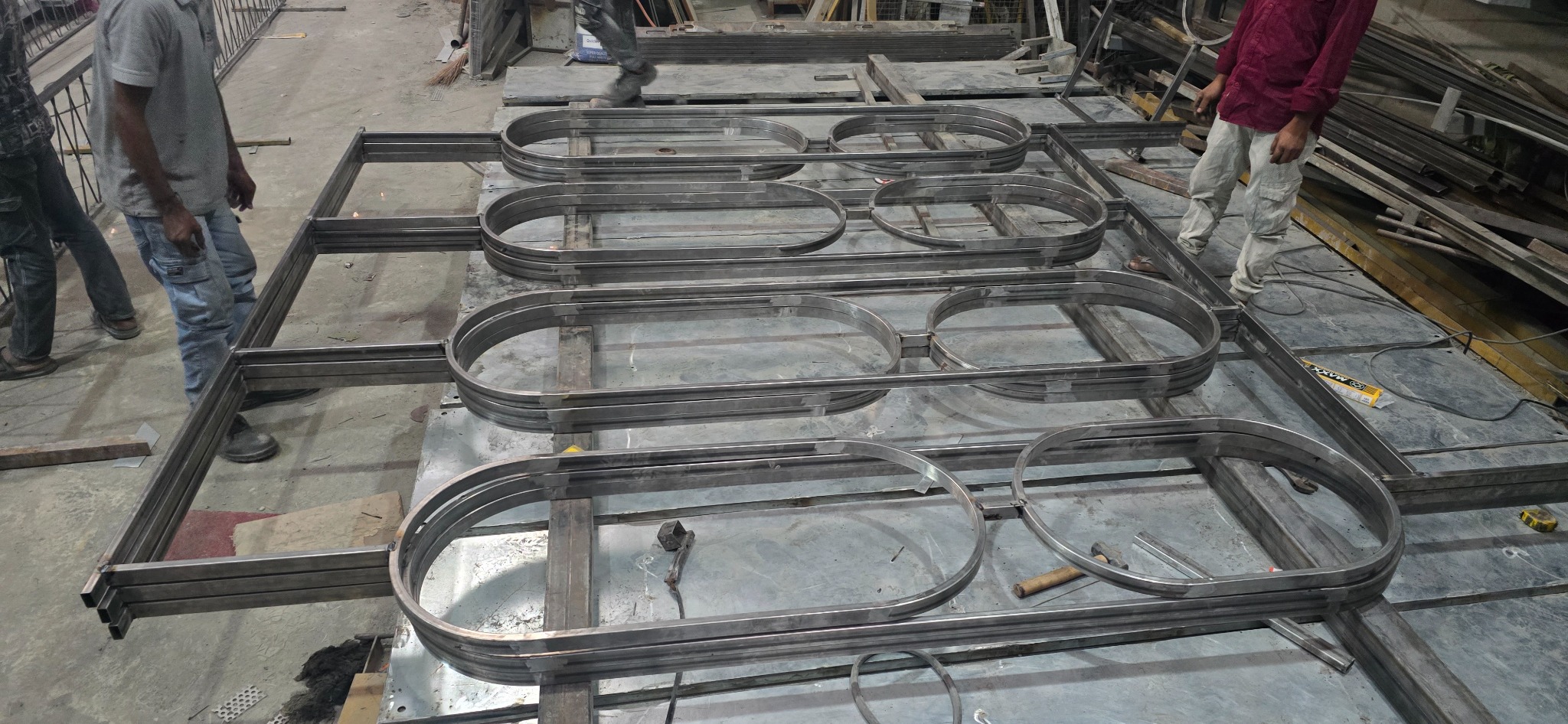

Repeating capsule metal modules being assembled — Repeated modules being assembled into the larger system.

03 / Batch fabrication

Consistency is produced one module at a time.

Building multiple matching frames as a batch improves repeatability and makes alignment easier to verify before the pieces leave the workshop.

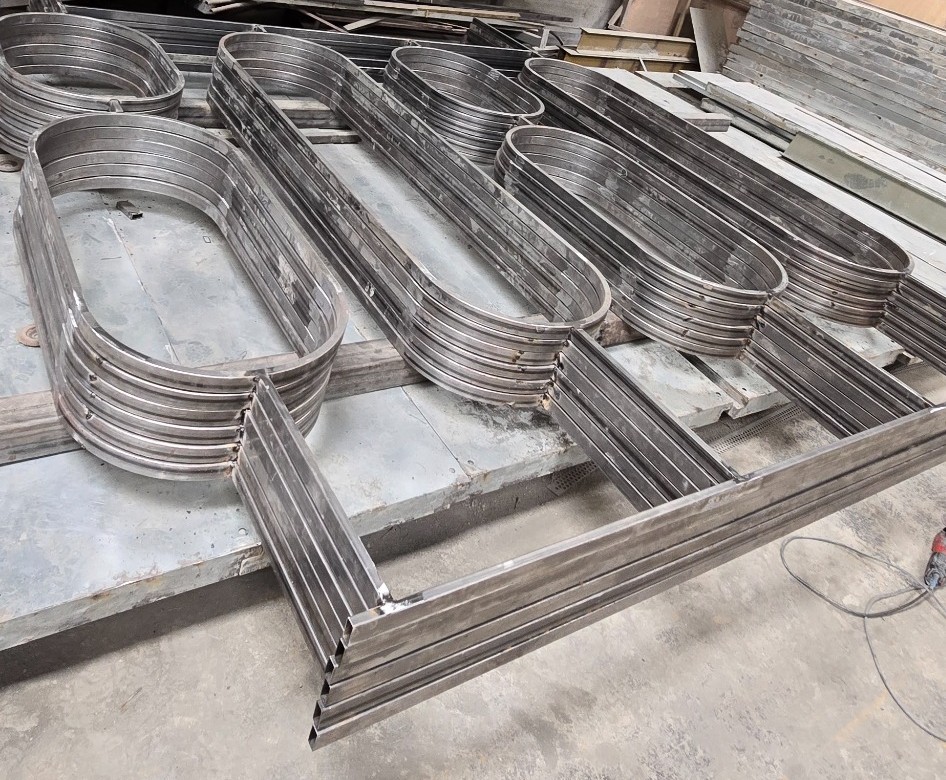

Workers fabricating a batch of repeating metal partition modules — Batch fabrication keeps the repeated geometry consistent.

04 / Protected frameworks

Finished geometry still needs careful handling.

Once the frames are fabricated, protection and storage become part of the build. Surface damage or distortion at this stage can affect the final alignment on site.

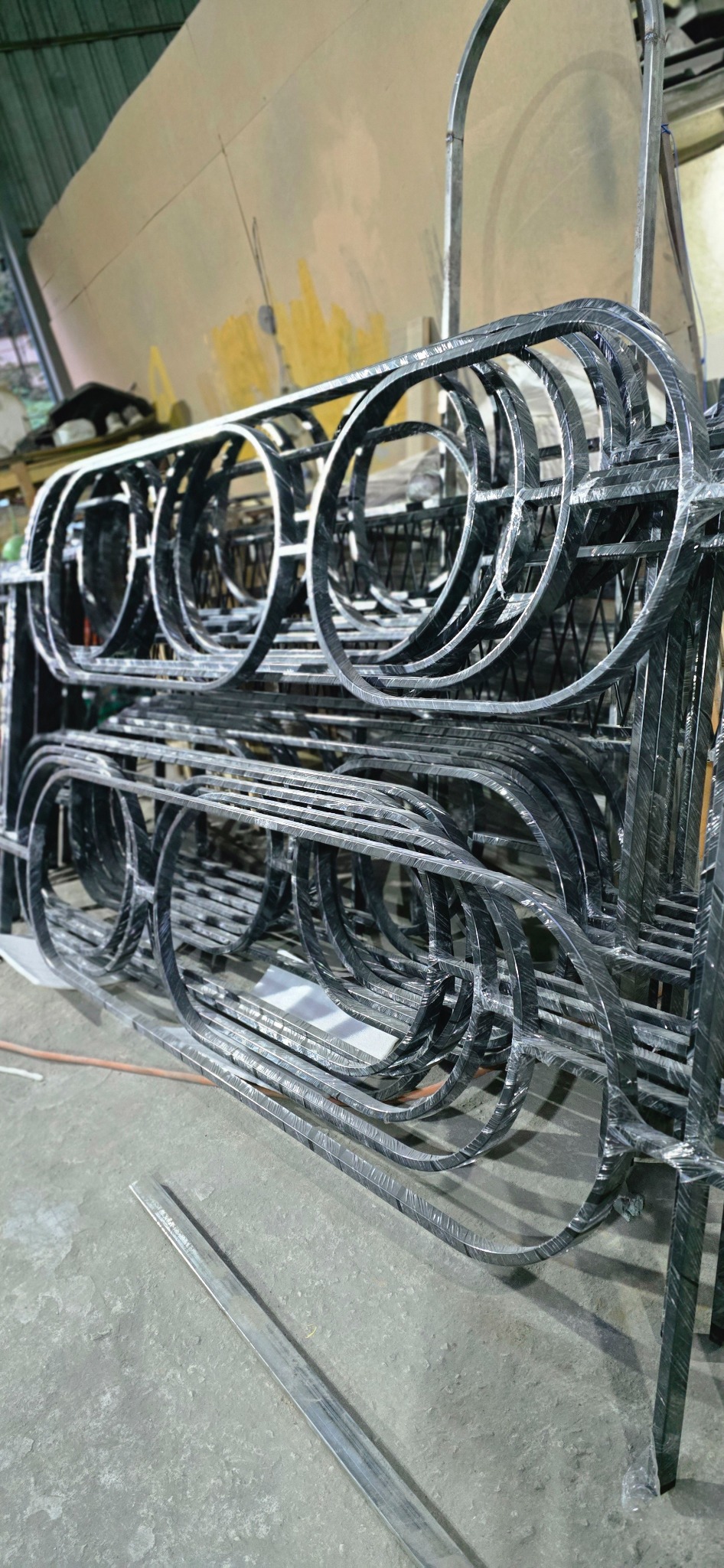

Protected fabricated metal partition frameworks ready for installation — Fabricated frames protected before transport and installation.

IronEdge team assembling the capsule partition framework — Team assembly and alignment checks.

Concept visualisation of the completed capsule glass partition — Design visualisation of the intended capsule partition rhythm.

05 / Installation intent

The final glass will reveal the value of the hidden work.

The completed system is intended to separate space without making it feel closed. The metal rhythm carries the design, while the glass preserves openness and sightlines.

Concept visualisation of a capsule glass partition in a hospitality interior — Design visualisation showing the intended hospitality application.

Fabrication progress recorded before installation.

Field Note

“The finish creates the impression. The framework makes it possible.”

These photographs preserve a part of the project that will soon become invisible. They show why custom fabrication is not limited to the final object: it also includes translating architectural intent into buildable frames, repeated geometry and site-ready assemblies.

When the project reaches its next stage, this journal will return to the same elements during cladding and again after completion.
